Product Navigation

  • DSO Cooled Cameras DSO Cooled Cameras
  • Planetary Cameras Planetary Cameras
  • Accessories Accessories

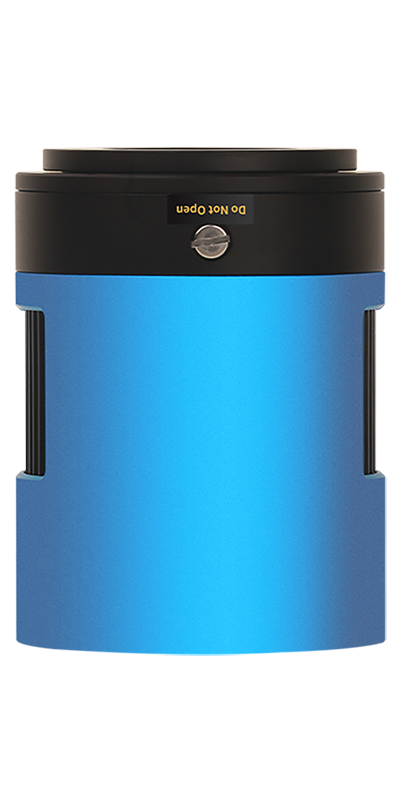

DSO Cooled Cameras

  • SkyEye24AC

    SkyEye24AC

  • ATR2600C

    ATR2600C

  • Camera NameSkyEye24ACATR2600C
  • Old Camera NameSkyEye24ACATR3CMOS26000KPA
  • SensorIMX410CIMX571C
  • Diagonal43.27mm28.3mm
  • Sensor Size36x24mm23.4x15.7mm
  • Resolution6064x40406224x4168
  • ADC (Analog-to-Digital Converter)14bit16bit
  • Pixel Size5.94um3.76um
  • Readout Noise (LCG)4.48 - 1.95e-2.4-1.14e-
  • Readout Noise (HCG)2.15-1.16e-
  • Full Well Capacity104ke-51ke-
  • QE (Quantum Efficiency) Peak>80%>80%
  • Interface TypeUSB3.0USB3.0
  • FPS (Frames Per Second)16fps13.3fps
  • SNR (Signal-to-Noise Ratio)50.2dB47.1dB
  • Dynamic Range87.3dB86.8dB
  • DDR3 (Double Data Rate 3)512MB512MB
  • Anti-dewAdjustable heating windowAdjustable heating window
  • CoolingSecondary TEC refrigerationSecondary TEC refrigeration
  • Back Focal Length17.5mm/12.5mm17.5mm/12.5mm
  • Protective Glass TypeIR/ARIR/AR
  • ShutterRolling shutterRolling shutter
  • Bayer MatrixRGGBRGGB

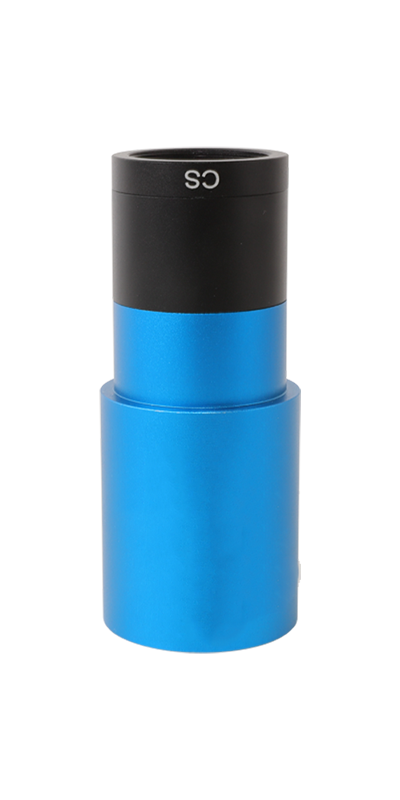

Planetary Cameras

  • G3M715C

    G3M715C

  • G3M662M

    G3M662M

  • Camera NameG3M715CG3M662M
  • SensorIMX715CIMX662M
  • Diagonal6.39mm6.39mm
  • Sensor Size5.57x3.13mm5.57x3.13mm
  • Resolution3840*21601920x1080
  • ADC (Analog-to-Digital Converter)12bit12bit
  • Pixel Size1.45um2.9um
  • Readout Noise1.35-0.57 e-5.35-0.46 e-
  • Full Well Capacity5.7ke-39ke-
  • QE Peak (Quantum Efficiency Peak)>91%>91%
  • USBUSB3.0USB3.0
  • FPS (Frames Per Second)47fps107fps
  • Signal-to-Noise Ratio37.7dB46dB
  • Dynamic Range72.8dB77dB
  • DDR3 (Double Data Rate 3)512MB512MB
  • Cooling
  • Back-Illumination
  • Protective Glass TypeIR/ARIR/AR
  • ShutterRolling shutterRolling shutter
  • Bayer MatrixRGGBRGGB
  • Frame Buffer

Accessories
